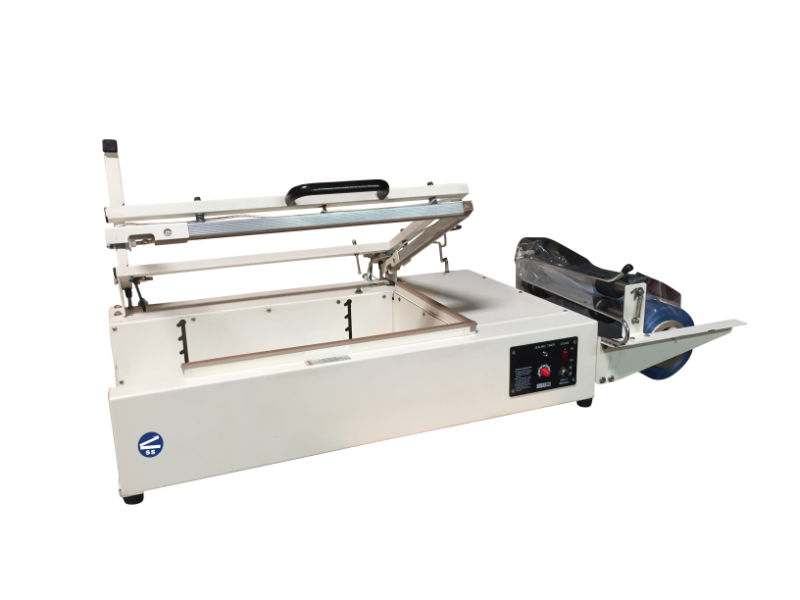

L-Bar Sealer
W-Series
W-Series L-Bar Sealers are designed for easy and quick shrink wrap packaging. Operators can produce products that have a factory fresh clean look and feel. Our L-bar sealers create packages that are free from dust, moisture, and fingerprints regardless of shape. Discourage tampering and shoplifting with this shrink wrapping system.
FEATURES
Ideal for quick and easy shrink film packaging
Steel construction for heavy duty use and durability
Adjustable height work table for sealing packages of different heights
Heating element located on the upper jaw of the sealer
Included: film roller, twin perforating hole punch, film separator, work table, and up right heat gun holder (w/ built in electrical outlet)
Unit ships via LTL freight only. Call for freight rates
One step will seal and cut film up to 26” wide depending on the model of the sealer. The durable steel construction ensures durability and quality. Sealing time is controlled by an electronic timer. All W-Series L-Bar sealers are equipped with a film roller, twin perforating hole punch, film separator, work table, and upright heat gun holder.
Easy to Operate: Set the timer. Insert your product between two layers of centerfold film and press down on the sealing bar. Slightly pull the package away from the machine. The element wire will seal the edge and cut off the film. Apply hot air using a heat gun or shrink tunnel (see our model: CN-4520A) to shrink film tightly around the package.
Special order option of left to right feeding available. Contact us for more details.
Specifications:
| W-350L | W-500L | W-650L | |
|---|---|---|---|
| Seal Length (V x H) | 14" x 20" | 20" x 26" | 26" x 31" |
| Max Height | 6" | 6" | 6" |
| Power | 110V / 1000W | 110V / 1900W | 110V / 2800W |
| Seal Type | Line | Line | Line |
| Weight (lbs) | 80 / 18 | 98 / 21 | 116 / 22 |
| Dimensions | 49" x 24" x 13" | 56" x 30" x 13" | 60" x 26" x 13" |
Download W-Series L-Bar Sealer Specification Sheet for more information
