Weigh Fill Systems

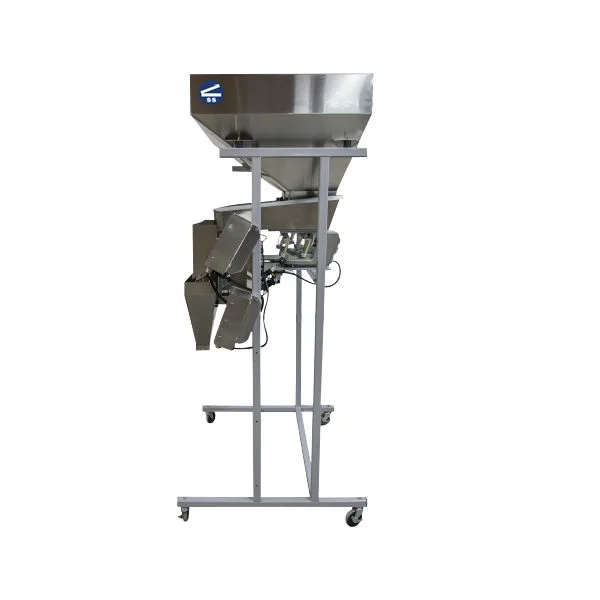

WFS-Series | SKU: WFS-7

The model WFS-7 dual lane weigh fill scale system share many of the same basic characteristics of the WFS-4. A very accurate and easy to use controller allows for three different modes of operation. WFS-7 fills both weigh hoppers at the same time, allowing for twice as much product flow as our WFS-4.  The machine dumps whichever weigh hopper is at weight. This gives twice the speed of our WFS-4 machine. Finally the model WFS-7 can mix products. The WFS-7 dual controller can be set to weigh two completely different products at different weights to easily mix products into one container.

To determine if the WFS-7 is right for your application, please provide us with the following information:

1. What product will you be running through the machine?

2. What weight or weights do you need to fill?

3. What are the configurations and dimensions of your containers at the top?

4. How many filling cycles per minute do you think you need?

Special order unit.  Lead time:  4-6 weeks.

FEATURES:

• Self-adjusting controller

• Reads out to 1 gram or .001 lbs.

• Controller range up to 10 lbs.

• 5.1 cu.ft. supply hopper (equivalent to 7 five-gallon pails)

• All product contact surfaces 304 stainless steel

• Includes powder coated standard chassis but all product contact surfaces 304 stainless steel

• Footprint 7.25 sq.ft., 68" high

• 4 locking casters

• 120V / 60Hz (Option: 240V / 50Hz)

• Handles all dry bulk products from powders to large parts

• Compatible with all bags, rigid containers, and bagging machines

• Automatic tare adjustment

• On-the-fly, self-adjusting bulk & dribble speed control

• Up to 1500 fills/hour

• Unit ships via LTL freight only. Call for freight rates

• Via special order with a 6-8 weeks lead time

Specifications:

Download WFS-7 Weigh Fill System Specification Sheet for more information
