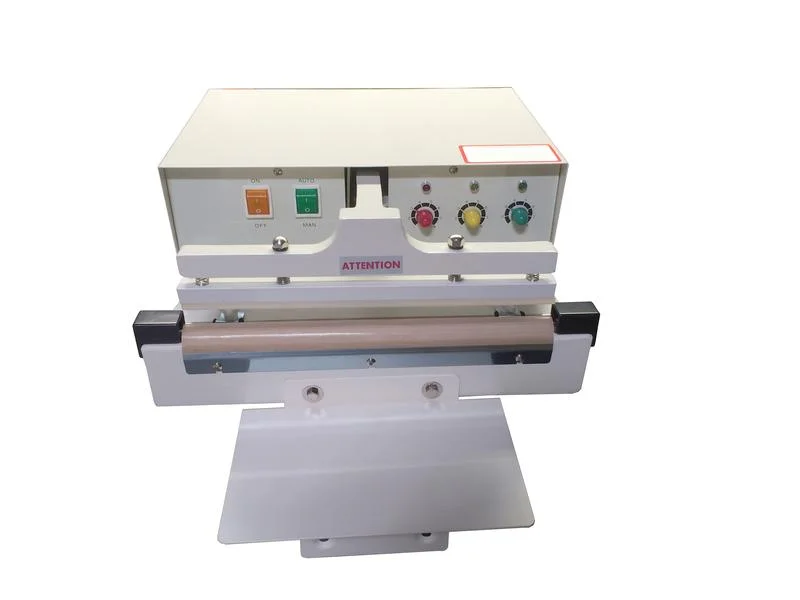

Automatic Sealer

W-Series | SKU: WHA

W-Series automatic sealers are designed for the continuous sealing of thermoplastic materials.  The W-Series automatic sealer is equipped to seal materials up to 24" wide and 15mil total thickness depending on model.  Unit is controlled by a plug-in transistorized circuit board.  Equipped with an electronic timer and electromagnet, once correct settings have been established, consistent seals will be maintained automatically.

FEATURES:

  • Automatic impulse sealing with precise electronic control

  • Dual mode operation: automatic or manual

  • Foot switch allows both hands to be free

  • 3 separate control settings for sealing time, recycle time, and congealing time to produce consistent seals

  • Includes electric foot switch and worktable

  • Seal Length:  12" / 300mm, 18” / 450mm, or 24” / 600mm

  • Seal Width: 2.7mm or 5mm

The manufacturer's replacement kit includes 2 heating elements.

Easy to operate.

For automatic operation, set the control on auto.  Adjust the sealing time (heating time), congealing time (cooling time), and recycle time (automatic operation of jaws).  Insert material to be sealed and when jaw opens, remove sealed material.

For manual operation, set the control to manual.  Insert the material to be sealed.  Press down on the foot switch to activate the sealing bar.

Specifications:

Model #Seal LengthSeal WidthPowerWeightDimensions
W-300A12"2.7MM450W50LBS17" x 14" x 8"
W-305A12"5MM600W52LBS17" x 14" x 8"
W-3010A12"10MM1000W55LBS17" x 14" x 8"
W-450A18"2.7MM600W56LBS21" x 14" x 8"
W-455A18"5MM800W59LBS21" x 14" x 8"
W-4510A*18"10MM2654W59LBS21" x 14" x 8"
W-600A24"2.7MM800W68LBS27" x 14" x 8"
W-605A24"5MM1300W70LBS27" x 14" x 8"
W-6010A*24"10MM3080W72LBS27" x 14" x 8"
W-755AA30"5MM2600W82LBS33" x 14" x 10"

*Special Order
