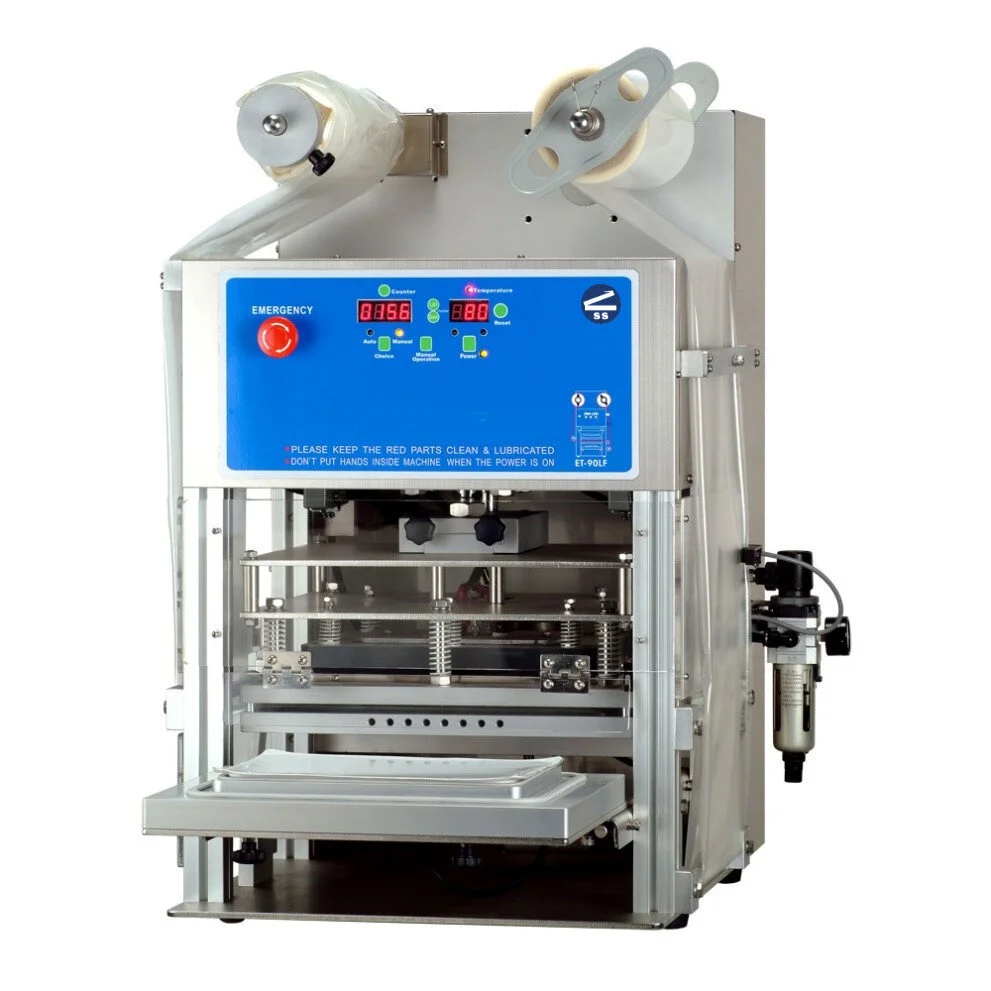

Semi-Automatic Tray Sealer

SS-900-Series

Discontinued

Our SS-900 series is a table top model used for sealing heat sensitive film to preformed trays or containers for a tamper evident stay-fresh seal, it will seal and die cut the film around the container for an attractive look. The temperature and sealing time can be set depending on the type of tray and material being sealed. When you load the tray a sensor in the machine detects the tray and automatically advances the tray into the sealing area to initiate the sealing cycle once inside the pneumatic cylinder moves downward to apply the seal pressure and at the same time die cuts around the tray to make a nice clean cut around the tray leaving no scrap, the sealing fixture will then move outward where the tray may be removed. The film is then automatically advanced for the next package. This machine is designed to ensure that each compartment of the tray is separately sealed. Easy changeover of tooling allows operator to run different trays easily.

FEATURES:

• #304 stainless steel frame construction

• Digital temperature control with microcomputer program

• Pneumatic sealing with diet cuts around the tray

• Adjustable sealing timer

• Suitable for PP, PE, PET, PVC, cardboard or foil trays

• Fast warm up time

• Manual or auto mode

• Includes one set of tooling with machine

• Fast and easy tooling changeover for different tray sizes

• Safe automatic shut off if safety guard is activated

• Optional gas flush, date coder

• Via special order only

• 8-10 sample trays will be required prior to purchase for evaluation and testing

• External compressor required (1CFM @ 80PSI)

Specifications:

Download Semi-Automatic Tray Sealer Specification Sheet for more information

Download Tray Sealer application survey.
