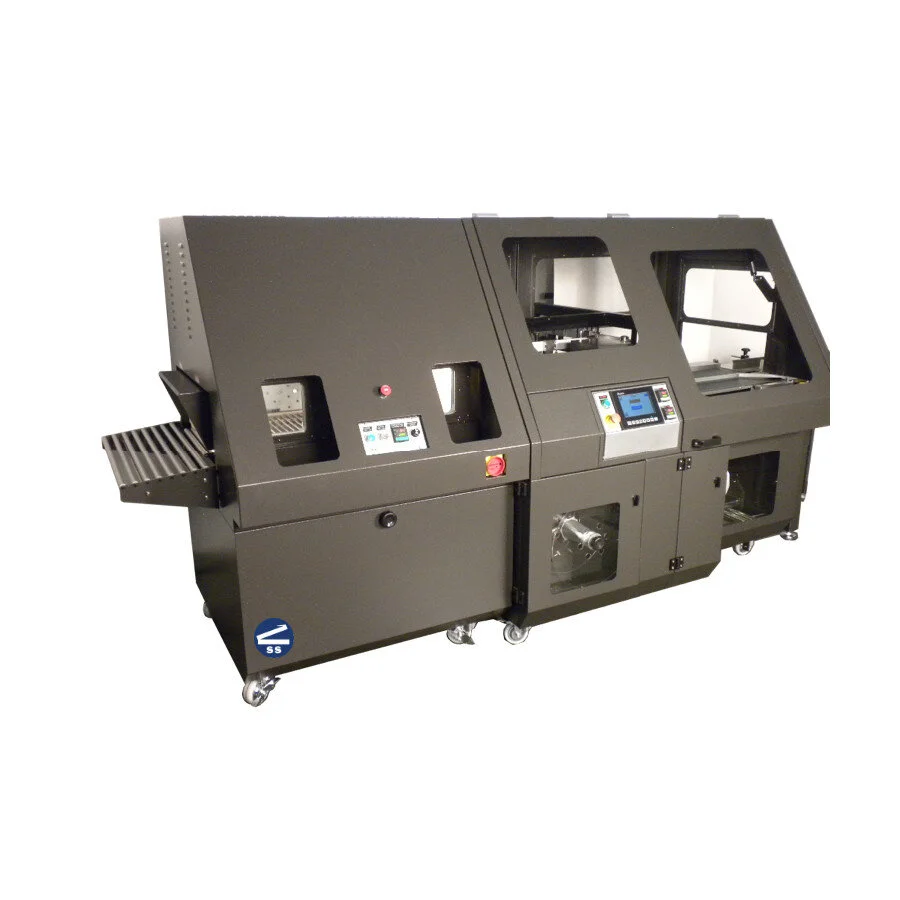

Automatic L-Bar & Tunnel Combo

SS-Series | SKU: SS-5300/5600 Combo

The new fully automatic SS-5300/SS-5600 Combo is the only automated L-Bar Sealers and Tunnels to feature “APA” Automatic Product Adjustment. Operator simply selects desired program from the one touch control panel and the machine will automatically adjust the infeed conveyor and inverting triangle to package size in less than 15 seconds. No more fussing with crank handles or guessing the proper package size.

“APA” – Automatic Product Adjustment – machine automatically adjusts inverting head and infeed conveyor to different package sizes from one touch panel in less than 15 seconds

FEATURES (L-BAR)

• “APA” - Automatic Product Adjustments

• Speeds up to 40 PPM

• Vertical seal head design

• Fast product changeovers

• “Single Piece” hot knife seal blade

• 7” Color touch-screen control panel

• Variable speed drive 0-110 FPM

• Delta PLC with 40 program memory

• Motorized adjustment of seal head

• Pin wheel hole punch

• Front load film cradle

• Seal area 25”L x 19”W or 19”L x 16”W

• Self-diagnostics for safety sensors, low voltage, broken scrap wind, etc.

• Emergency stop switch

• Self-contained scrap removal system with built-in alarm when full

FEATURES (SHRINK TUNNEL)

• Dual lighted viewing window

• Chamber size 18”W x 7”H x 38”L

• Energy efficient

• 1HP blower motor

• Fully re-circulating air chamber

• Live roller rod conveyor

• Digital temperature controller programmable 0-400 degrees

• 10KW heater bank

• Tunnel adjusts side to side, will center package into tunnel

• Variable speed drive 0-110 FPM

• Solid state digital temperature controller

• Automatic cool down and shut off

• CE Approved safety system exceeds OSHA safety standards

Specifications:

Download SS-5300C/SS-5600CS Fully Automatic L-Bar and Shrink Tunnel Set for more information
