Incline Conveyor

SKU: MC-INC-132-PVC

Discontinued

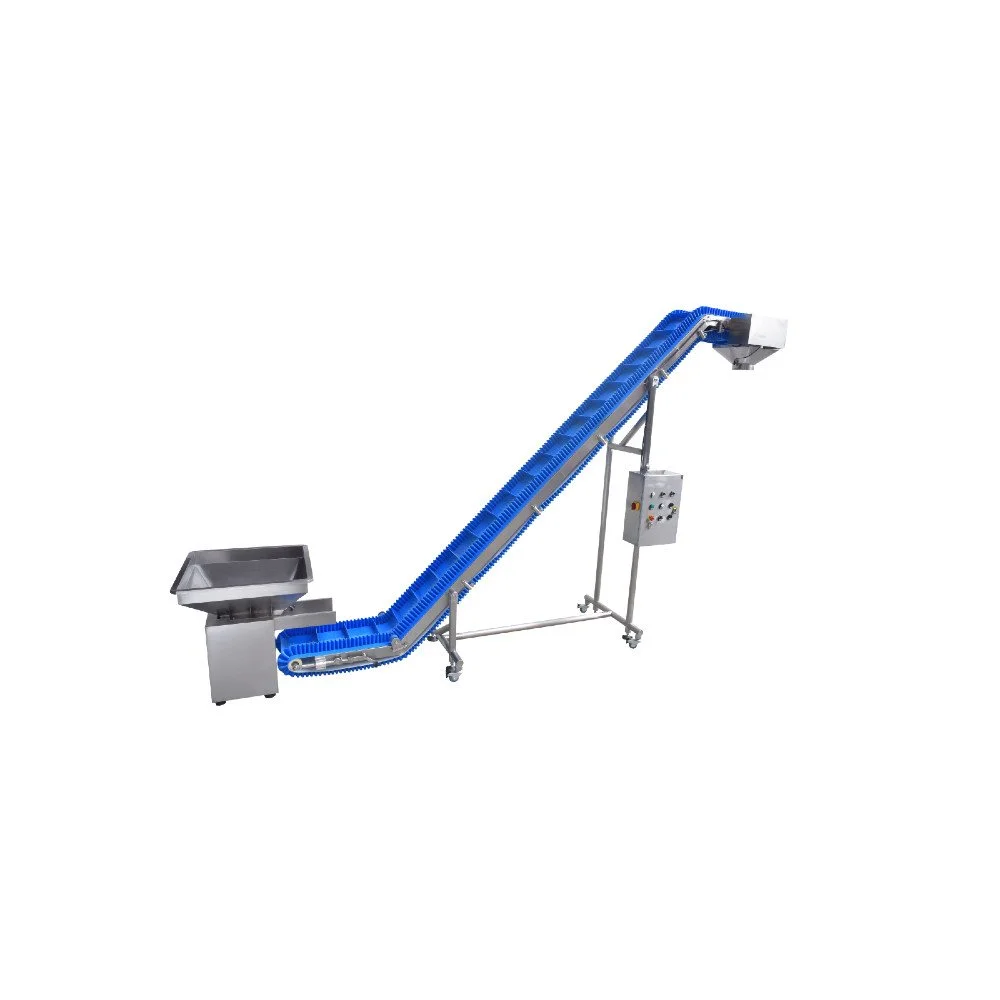

Introducing our MC-INC-132-PVC powered incline conveyor with PVC belting with side wings and cleats fitted with a vibration feeder. The conveyor is best suited for conveying products such as confectionary, noodles, chocolates, grains, nuts frozen meats etc. The INC-132 is built to order with seamless integration to upstream and/or downstream equipment. Both the conveying capacity and feeder speed can be adjusted independently to maximize performance.

FEATURES:

  • Vibration feeder with 120 Litre (32 Gallon) product hopper

  • Variable speed drive

  • Conveying capacity of 5 cbm/hr (176 cubic ft/hr)

  • Discharge height can be customized

  • # 304 Stainless Steel Frame Construction

  • Cleated plastic modular belting

  • Special order unit

  • Warranty: 1-year

  • Unit ships via LTL freight only. Call for freight rates

Specifications:

MC-INC-132-PVC
Voltage220V/1 Phase / 50/60Hz
Power0.75Kw
Conveyor Capacity5 Cubic Meters per hour/ 176 cubic ft/hr or (1,320 Gallons/ hr)
Conveying Height1700mm / 67” (made to order, can be extended or shortened)
Hopper Size120 litre (32 Gallon)
Machine Weight160 kg (360-lbs)
Machine Dimensions3400mm L (134”) x 700mm W (28”) x 1800mm H (71”)
