I-Bar Sealer
W-Series
FEATURES:
Ideal for shrink wrapping or making bags from poly tubing
Impulse sealing requiring no warm-up time
Heavy duty construction for durability
Available with sliding cutter (IC)
Model Numbers Available: W-350I, W-350IC, W-500I, W-500IC, W-650I, W-650IC, W-750I, W-750IC, W-900I, W-900IC

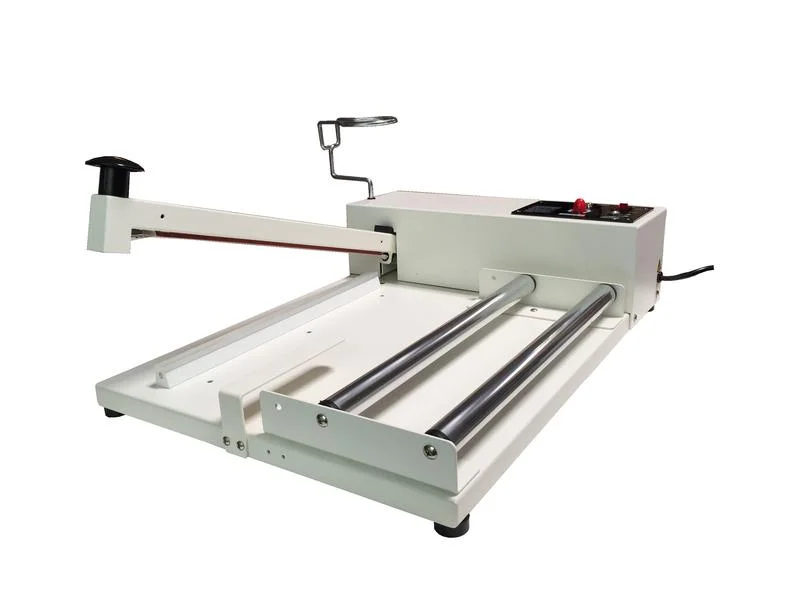

Our W-Series I-Bar sealers are ideal for shrink wrapping as the sealers are accompanied with a round wire for cut and seal applications. Our W-Series I-Bar sealers w/ sliding cutters have a flat element and sliding blade to make bags out of poly tubing. For shrink wrapping, refer to our I-Bar sealers without a cutter. For making poly bags, refer to our I-Bar sealers with a cutter.

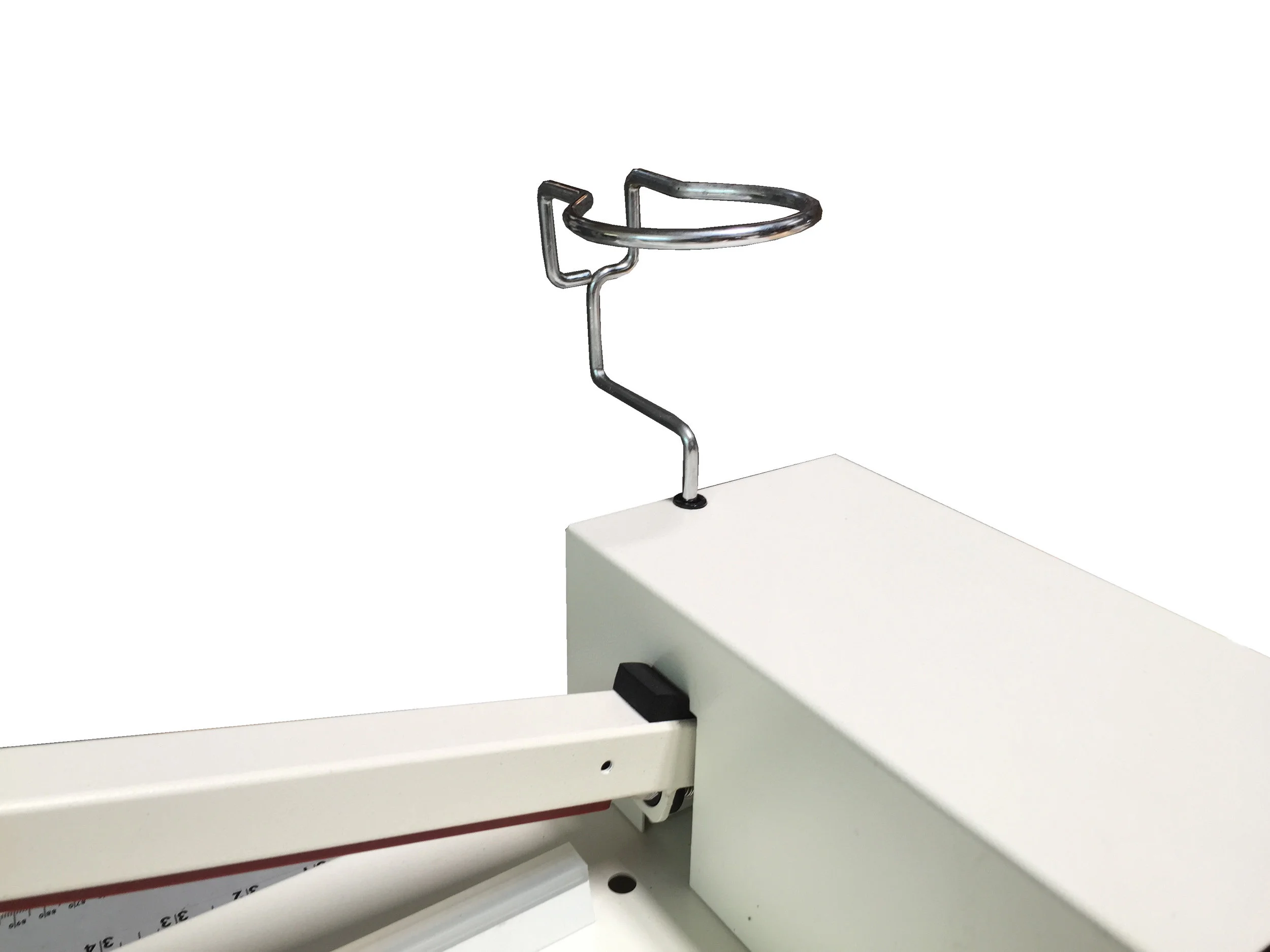

The sealers are equipped with a round wire for cut and seal or flat if ordering the IC units. Depending on the model of the unit, film up to 34" and 0.025mm (100 gauge) thickness can be used. All sealers are of steel construction including the work base for quality and durability. Additional features include a timer, heat gun holder, film, roller, film separator and sliding cutter (IC-Series).
W-Series I-Bar sealers come in an ivory color. Lengths that are available: 14", 20", 26", 30", and 35" lengths with a round or 2.7mm seal width. Cutting lengths will be 2" shorter than the sealing lengths. The blade cuts 5/8" from the seal. Manufacturer's replacement kit comes with 3 elements and 2 PTFE adhesives. (A blade is included in the cutter models.)
| W-350I/IC | W-500I/IC | W-650I/IC | W-750I/IC | W-900I/IC | |
|---|---|---|---|---|---|
| Sealing Length | 14" | 20" | 26" | 30" | 35" |
| Cutting Length | 13" | 19" | 24 1/2" | 28 3/4" | 33 3/4" |
| Power | 450W | 600W | 800W | 1000W | 1200W |
| Voltage | 110V | 110V | 110V | 110V | 110V |
| Weight (lbs) | 38 | 44 | 50 | 51 | 65 |
| Dimensions | 24" x 16" x 6" | 30" x 16" x 6" | 35" x 16" x 6" | 38" x 16" x 6" | 45" x 16" x 6" |
Download W-Series I-Bar Sealer Specification Sheet for more information
