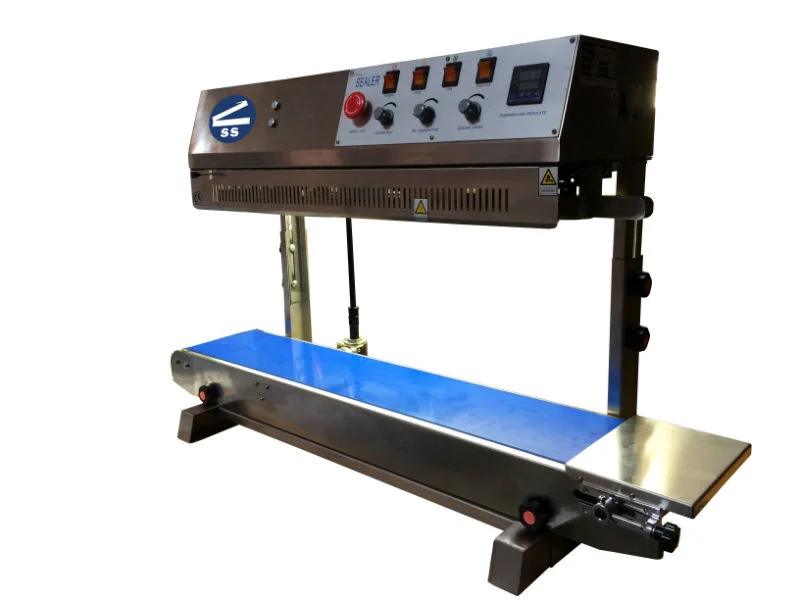

Vertical Band Sealer

FRM Series | SKU: FRM-1010II

Our newest addition to our band sealer product line providing the best combination of elegance and functionality in one unit.  FRM-1010 provides a 15mm seal width, the widest seal available!  FRM-1010 is a heavier duty model compared to our CBS and HLM band sealer lines and offers the best sealing quality on the market.

FEATURES:

  • Vertical configuration with minimum and maximum bag height when bag filled:  Min: 7.8" / Max: 12.0"

  • Durable stainless steel

  • Easy to operate - minimal operator training

  • Fast warm up time

  • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality

  • Fully adjustable conveyor (the conveyor height and depth in relation to seal bars can be adjusted)

  • Motorized rubber conveyor for speed control

  • Knurled pressure rolls with variable pressure adjustment

  • One pair each of cooling and heating blocks

  • Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks

  • Dry ink coding allows for printing on the seal line

  • Unit feeds right to left

  • Equipped with an emergency stop button

  • Manufacturer’s spare parts kit includes:: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and typesets (numbers 0-9 and letters EXP, MFD)

  • Unit ships via LTL freight only. Call for freight rates

OPTIONAL FEATURES:

  • Stainless steel stand for horizontal models

  • Dry ink coding – Font size - 10.5PT

  • Digital counter to keep track of sealed packages

Specifications:

Header 1Header 2
Power110V / 60Hz
Motor Power50W
Sealing Speed0-472"/min
Seal Width15MM
Sealing Power300 x 2
Temperature Range0-300°C
Conveyor Size42" x 8"
Max. Conveyor Load22lbs
Bag Size (Filled)Min: 7 7/8" / Max: 12 1/2"
Character Size18PT (3x5x7mm) 2 Lines / Optional: 3 Lines / 20 characters per line
Printing Heating Power40 x 2
Dimensions48" x 18" x 25"
Weight (lbs)Net: 119 / Gross: 165
