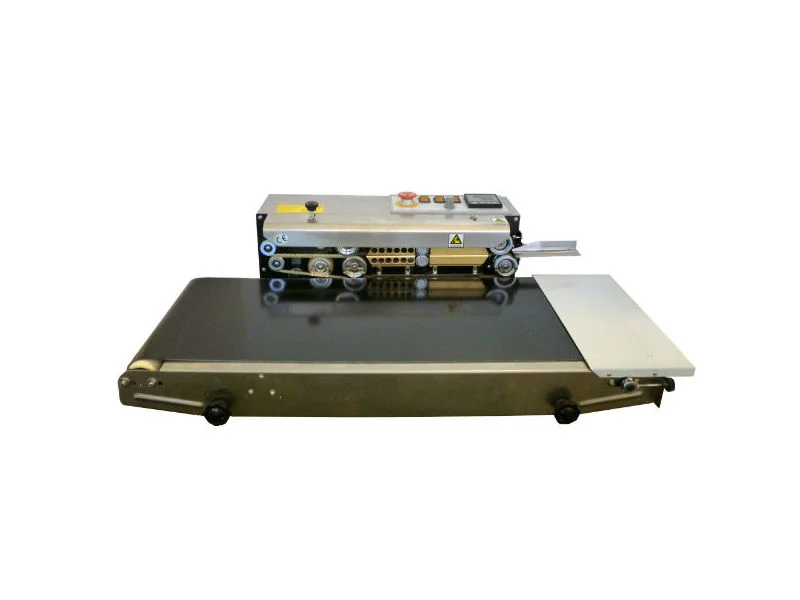

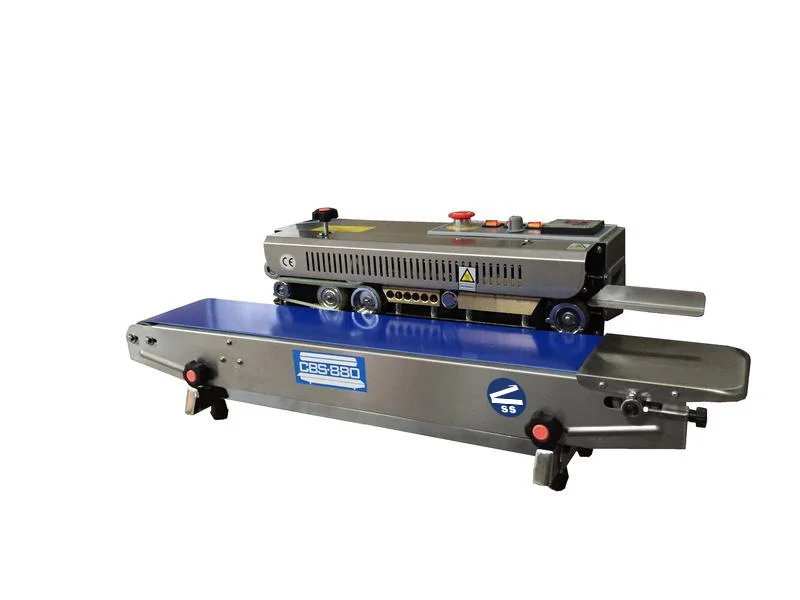

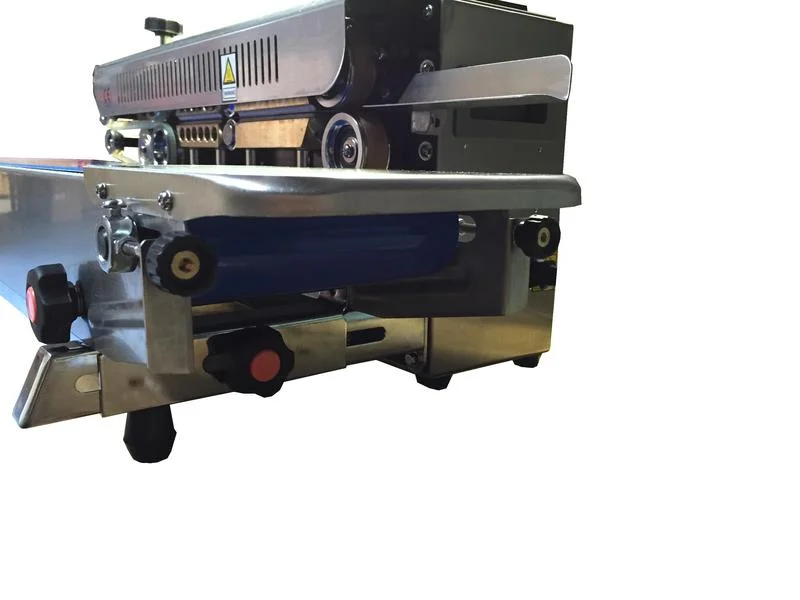

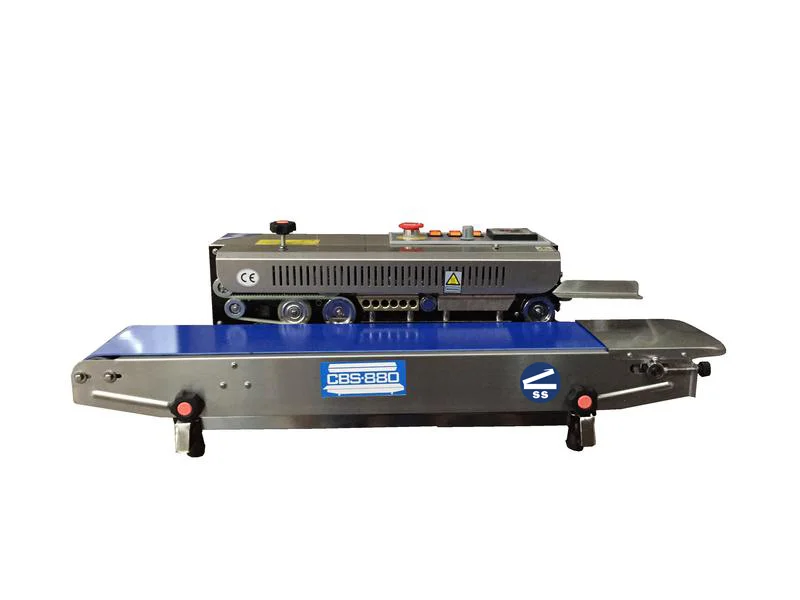

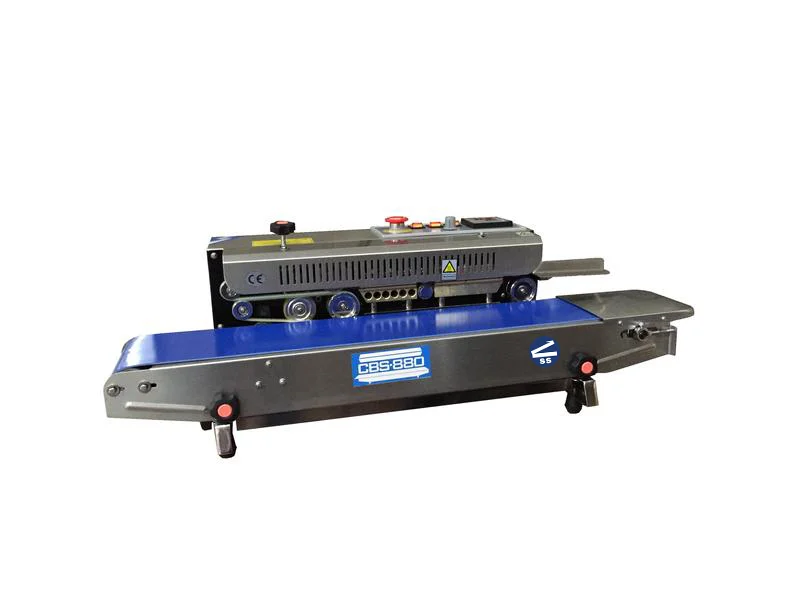

Horizontal Band Sealer
CBS-Series | SKU: CBS-880I
Suitable for sealing all types of plastic materials and bags. One of our most popular band sealers with a great value propositions. Can seal 20-30 6" wide poly bags per minute.
FEATURES:
Durable stainless steel
Easy to operate - minimal operator training
Fast warm up time
Seals any thermoplastic material including PE, PP, and laminates
Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
Motorized rubber conveyor with speed control
Knurled pressure wheel rolls with variable pressure adjustment
One pair each of cooling and heating blocks
Sealing method - constant direct heat
Unit feeds right to left
Equipped with an emergency stop button
Includes wheel to emboss on seal line without ink
Can easily be converted to a vertical configuration with an optional converting kit
Manufacturer’s spare parts kit include: PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)
OPTIONAL FEATURES:
Smooth or serrated sesal
Stainless steel stand for horizontal units only
15mm or 30mm seal width
Digital counter to keep track of sealed packages
Specifications:
| Header 1 | Header 2 |
|---|---|
| Power | 110V / 60Hz |
| Motor/Sealing Power | 50W / 300 x 2 |
| Sealing Speed | 0-630"/min |
| Seal Width | 10MM |
| Temperature Range | 0-300°C |
| Conveyor Size | 38" x 7" |
| Max. Conveyor Load | Under 22-lbs |
| Character Size | 3 x 4 x 9mm |
| Optional Embossing | 1 Line Embossing (3 sections with 15 characters/line) |
| Dimensions | 33" x 15" x 13" |
| Weight (lbs) | 66 |
CBS-880 Set-Up
Unboxing CBS-880
Download CBS-880 Band Sealer Specification Sheet for more information
